We are manufacturers and suppliers of wide range Passenger Elevators or lift in Bihar We are the manufacture of highly efficient passenger elevators using premier Raw Material. Particularly designed by our professionals these lifts are used for carrying passengers from one floor to another. These lifts are designed ni different forms like powder coated or stainless steel with mat finished stainless steel by our professionals.
Space Elevators the premier Passenger Elevators in Bihar and different parts of India, we are design manufacture and suppliers the elevators keep the mind the space for your requirement, and architecture of Hospitals and nursing home. As stretcher cum passenger lifts or elevators are meant for the patients, such elevators are specially designed by us to provide ors maximum comfort and ease in operation with no jerks and sound.
Machine : Geared or Gear less-fitted in the Machine Room on I-Beams. Normal Load : 4 Passenger (272 KGS.) to 26 Passenger (1768 KGS.)Loads Speed : Low Rise : (Up to 6 floors) - 0.65 to 1.0 meter/second. Mid Rise : (Up to 12 floors)-1.0 to 1.6 meter/second. High Rise : (12 Floors and Higher)-1.6 meter/second. Control Unit : Microprocessor based control unit is fitted in the Machine Room. Drive : Variable Voltage Variable Frequency drive fitted in the control unit with open and closed loop operation. Doors : Automatic Center / Telescopic Doors or Manual Imperf orated and Telescopic doors.
Energy Efficient : Use of variable frequency drives ensures low consumption of electricity and thus, power saving. Auto light ON and OFF, use of LED lights results in immense saving of power.
Standardization : All lifts are designed as per IS Specifications and as per the lift directives in force.
Comfort : Jerk Free and Smooth Ride.
Space Optimization : With Rise Elevators’ Electric lift space is no longer very critical that needs to be considered when deciding to install an Elevator with or without Machine Room. Space-Optimization is guaranteed by efficient design.

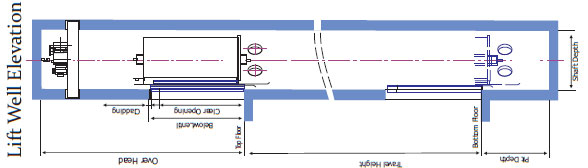

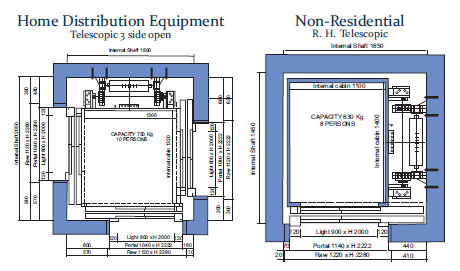

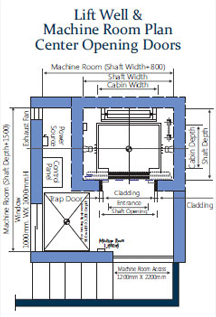

| Load | Car-Inside | Lift-Well | Entrance | Machine Room | Speed Mps | PIT Depth | Over Head | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Persons | Kg. | Width | Depth | Width | Depth | ||||||
| 15 | 1020 | 950 | 2400 | 1700 | 3000 | 800 | 3700 | 5500 | Up to 1.5 | 1600 | 4800 |
| 20 | 1360 | 1300 | 2400 | 2200 | 3000 | 1200 | 4200 | 5500 | Over 1.5 | 2500 | 6700 |
| 20 | 1768 | 1600 | 2400 | 2350 | 3000 | 1200 | 4350 | 5500 | |||
Machine : Permanent Magnet Synchronous gear less motor are fitted within the shaft overhead. Normal Loads : 4 Passenger (272 KGS.) to 26 Passenger (1768 KGS.)Loads Speed : Low Rise : (Up to 6 floors) - 0.65 to 1.0 meter/second. Mid to High Rise : (6 floors and higher)- 1.0 to 2.5 meter/second. Control Unit : Microprocessor based control unit is fitted in the top most floor along with the door frame and recessed in the wall. Drive : Variable Voltage Variable Frequency drive fitted in the control unit. Doors : Automatic Center / Telescopic Doors or Manual Imper forated and Telescopic doors.
Space Optimization: With rise elevators lift space is no longer very critical that needs to be considered when deciding to install an elevator with or without machine room. Space-optimization is guaranteed by efficient design.
Environment Friendly and Energy Efficient : Lower power consumption with a gear less machine, No oil and silent operation, therefore low maintenance and long life cycle.
Power saving lighting: The cabin lighting is LED type and with auto light ON/OFF feature which results in immense saving of power.
Comfort: It features a portico frame with 2:1 suspension and grantees a top quality ride.
Technology: Closed loop operation is synchronized with an absolute Encoder which enhances efficiency and reliability.
